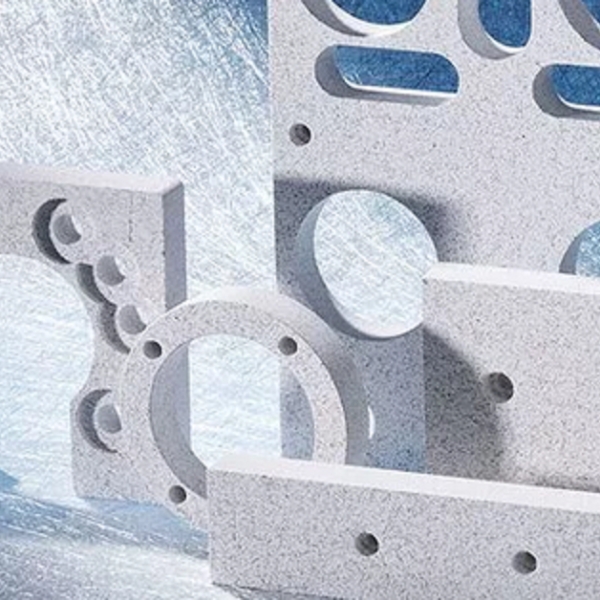

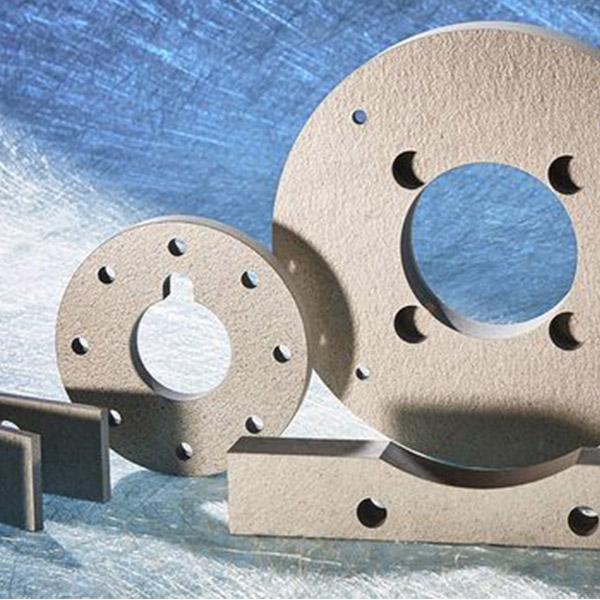

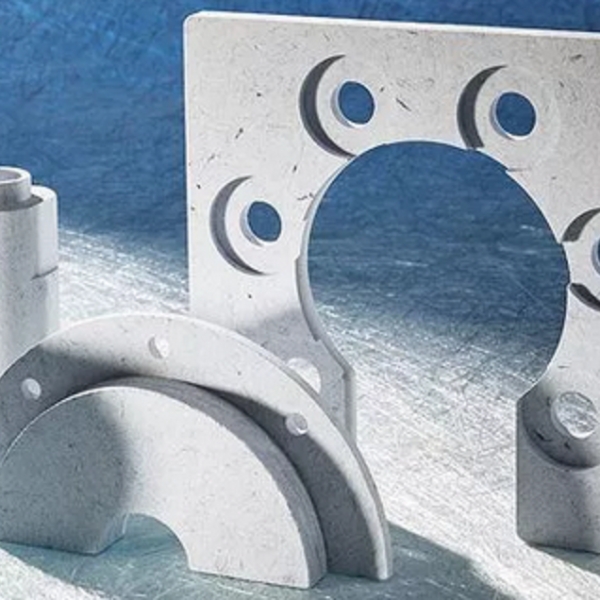

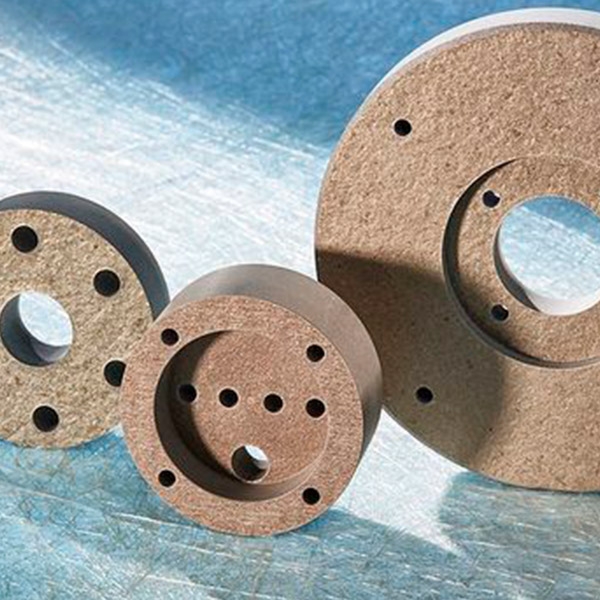

BRA-BOARD® T
BRA-BOARD® T is applicable in the construction of chemical plants, in the glass making industry, in induction facilities, in foundries, and in thermally high-stressed presses.
Thermal and Mechanical Properties
| Property | Value | Unit | Imperial |
|---|---|---|---|
| Temperature resistance (short-term) | 550 | °C | 1022 °F |
| Temperature resistance (long-term) | 500 | °C | 932 °F |
| Thermal conductivity | 0.3 | W/mK | 0.17 btu/ft h °F |
| Coefficient of linear expansion | 5 × 10⁻⁶ | 1/K | 5 × 10⁻⁶ |
| Compressive strength (room temperature) | 100 | N/mm² | 14503.8 psi |
| Flexural strength | 24 | N/mm² | 3480.91 psi |
| Compressive strength (200°C) | 75 | N/mm² | 10877.8 psi |
| Water absorption | 15% | - | 15% |
